Features:

Belt Sharpening Method
For knife sharpening, which is the most important step, we adopted a belt sharpening method that can always maitain the optimum sharpening condition.

Automatic Blade Edge Measuring Device
By adopting an automatic blade edge measurement device, we are able to constantly recognize changes in blade width after sharpening and perform accurate cutting.

Inverter Controlled Blower Suctin
The automatic pressure maintenance syastem consistently maintains the set suction force during automatic cutting.

Easy Operate
The current operating status is constantly converted into data as a report, allowing maintenance staff to understand the machine status simply by referring to the file.

Specifications

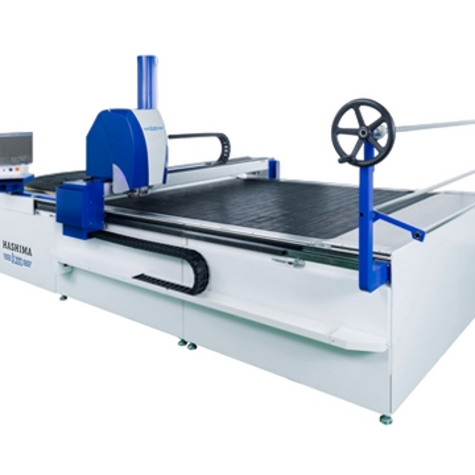

Product Name: Multi-ply Auto Cutter
Model: KMC-718HD
Max. cutting height: 70mm
Width of cutting area: 1800mm
Length of cutting area: 1800mm
Length of cutting table: 820mm
Cutting method: Knife reciprocation
Cutting speed: 1～50m/min
Drill: Standard Marking Drill：1.5～3.0mm/Option Reinforced punch　№1～3：3～20mm
Knife sharpening: Sharpening belt
Vacuum method: Turbo type automatic suction pressure control
Operation side: Standard: Left side / Option: Right side
Cutting conveyor: Nylon bristels
Safety stop device: Standard: Bumper type / Option: Sensor recognition
Power: 3-phase  AC200V　±10％　50/60Hz
PC for operation: Universal PC/OS：Windows10, 64bit
Display: 20 inches, LCD
Data entry media: LAN, USB
Data format: GBR/CAM/NC/CUT/KMC
Language: Japanese / English / Chinese / Vietnamese / Korean
Air supply: 0.5Mpa、70NL/min.(Option Knife cooler：350NL/min.)
Sound: ＜75db
Weight: 4500kg
usage environment

Temperature：10～43℃ / Humidity：＜95％
